Aluminum Scaffolding
Systems

Lightweight, portable, and corrosion-resistant aluminum scaffold towers
designed for efficiency, safety, and easy maneuverability across diverse
work environments.

View Specifications

Request a Quote

Lightweight Aluminum Scaffolding Solutions

Our aluminum scaffolding systems represent the perfect balance of strength and portability. Constructed from high-grade 6082-T6 aluminum alloy, these lightweight structures offer exceptional corrosion resistance while maintaining impressive load-bearing capabilities.
Unlike traditional steel scaffolding, aluminum scaffold towers are significantly easier to transport, assemble, and reposition—reducing labor costs and improving workflow efficiency. Each component is engineered for quick connection, allowing your team to set up safe working platforms in minimal time.

Lightweight Design

Up to 60% lighter than steel alternatives, reducing manual handling strain.

Corrosion Resistant

Ideal for outdoor use and humid environments without rust concerns.

Quick Assembly

Tool-free connections allow setup in minutes, not hours.

Easy Transport

Compact design when disassembled, fitting into standard vehicles.

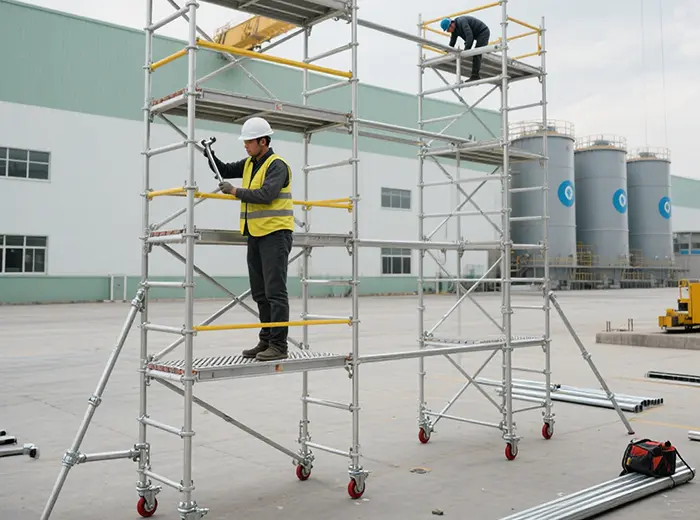

Aluminum alloy scaffolding tower construction

4.9/5

★★★★★

“Our aluminum scaffolding reduced our setup time by 70% compared to traditional steel systems. The team can now reposition the towers without heavy equipment.”

— Michael Thompson Facilities Manager

Aluminum Scaffolding Components

Our modular aluminum scaffolding system comprises precision-engineered components that
work seamlessly together, allowing you to configure custom structures for any application.

Mobile scaffolding tower vertical support column

Aluminum Standards

Vertical support columns with precision-drilled holes for secure connections. Extruded aluminum profile for maximum strength-to-weight ratio.
Material:6082-T6 Aluminum
Diameter:50mm – 60mm
Lengths:1m, 1.5m, 2m, 2.5m

Ledgers & Transoms

Horizontal aluminum tubes with spring-loaded locking pins for tool-free assembly and secure attachment to standards.
Connection:Quick-lock mechanism
Lengths:0.9m, 1.2m, 1.5m, 2m
Finish:Anodized or powder-coated

Scaffold Platforms

Non-slip aluminum planks with end hooks for secure placement. Available with plywood or composite decking options.
Width:250mm – 300mm
Lengths:1.8m, 2.4m, 3m
Load Rating:200kg/m²

Adjustable Braces

Diagonal support braces with telescopic design for easy length adjustment and enhanced structural stability.
Type:Cross, diagonal, facade
Adjustment Range:1.5m – 3m
Connection:Rotating clamp ends

Castor Wheels

Diagonal and horizontal braces for lateral stability. Heavy-duty swivel casters with locking mechanisms for easy mobility and secure positioning of mobile scaffold towers.
Wheel Diameter:150mm – 200mm
Load Capacity:300kg per wheel
Features:Dual-locking brakes

Safety Components

Aluminum guardrails, toe boards, access gates, and ladder sections to ensure full compliance with safety regulations.
Guardrail Height:1.1m
Toe Board Height:150mm
Compliance:OSHA, EN 1004

Technical Specifications

Our aluminum scaffolding systems are engineered to meet the highest industry standards for performance, safety, and durability while maintaining their lightweight advantage.

System Configurations

Mobile aluminum scaffold towers (1.5m x 2.5m base)

Static aluminum scaffolding structures

Double-width aluminum scaffolds for team work

Custom extensions for irregular surfaces

Request Custom Specifications

Material & Construction

Aluminum Alloy	6082-T6 (Tempered)
Yield Strength	≥250 MPa
Tensile Strength	≥310 MPa
Finish	Anodized (20μm minimum)
Welded Connections	TIG welded polished
Weight-to-Strength Ratio	30% better than steel

Performance Metrics

Maximum Working Height	12m (mobile), 30m (tied)
Working Load Capacity	4kN/m² (medium duty)
Wind Resistance	Up to 8m/s (unrestricted)
Assembly Time (Basic Tower)	2 people in 15-20 minutes
Minimum Transport Space	5m³ for 10m tower
Service Life Expectancy	15+ years with proper care

Safety & Compliance

ANSI/SSFI SC100-5

CE Marked

EN 1004: Mobile access towers

OSHA 1926.451 Standards

CSA Z797-17

ISO 9001 Quality Certified

Ideal Applications

Aluminum scaffolding’s unique combination of lightweight design and corrosion resistance
makes it the perfect solution for diverse industries and applications.

Facility Maintenance

Perfect for regular maintenance tasks in commercial buildings, schools, and industrial facilities where quick setup and mobility are essential.

Interior Renovation

Non-marking casters and lightweight design make aluminum scaffolding ideal for indoor painting, plastering, and ceiling work.

Exterior Work

Corrosion-resistant aluminum stands up to rain, humidity, and coastal environments for exterior painting, window installation, and cladding work.

Electrical Work

Non-conductive properties (with proper insulation) make aluminum scaffolding suitable for electrical installations and maintenance.

Events & Staging

Quick assembly and dismantling make aluminum scaffolding perfect for temporary stages, lighting rigs, and event setups.

Aerospace Industry

Clean, non-sparking aluminum scaffolding is ideal for aircraft maintenance, hangar work, and aerospace manufacturing facilities.

Marine Applications

Saltwater-resistant aluminum scaffolding excels in shipyards, ports, and offshore platforms where corrosion resistance is critical.

Emergency Services

Rapid deployment aluminum towers support rescue operations, disaster response, and emergency maintenance situations.

Aluminum vs. Steel Scaffolding

Understanding the key differences between aluminum and steel scaffolding helps you choose
the right solution for your specific needs.

Superior Strength & Durability

Steel scaffolding provides exceptional load-bearing capacity, making it ideal for heavy construction materials and equipment. Its durability ensures long service life even in harsh environments.

Enhanced Safety

With superior stability and resistance to movement, steel scaffolding minimizes the risk of accidents. It meets the highest safety standards for worker protection at height.

Long-Term Cost Efficiency

While initial investment may be higher, steel scaffolding’s longevity and reusability make it more cost-effective over time compared to other materials.

Versatility & Adaptability

Steel scaffolding systems can be easily configured for complex structures and uneven surfaces, adapting to virtually any project requirement.

Low Maintenance Requirements

Galvanized steel resists corrosion and damage, requiring minimal maintenance to keep it in optimal condition throughout its service life.

Eco-Friendly Solution

Steel is 100% recyclable, and our scaffolding systems are designed for multiple uses, reducing waste and environmental impact.

Steel vs. Other Scaffolding Materials

Feature	Steel Scaffolding	Aluminum Scaffolding	Wooden Scaffolding
Load Capacity	High (up to 6kN/m²)	Medium (up to 4kN/m²)	Low (up to 2kN/m²)
Durability	Excellent (20+ years)	Good (10-15 years)	Poor (1-5 years)
Weight	Heavy	Light	Medium
Corrosion Resistance	Excellent (with galvanization)	Excellent	Poor
Initial Cost	Higher	Highest	Lowest
Long-term Cost	Lowest	Medium	Highest
Best For	Heavy-duty, long-term projects	Light projects, frequent relocation	Temporary, low-load applications

Success Stories

Discover how our aluminum scaffolding solutions have helped businesses improve efficiency,
safety, and productivity across various industries.

The hotel uses scaffolding to repair chandeliers.

Grand Horizon Hotel Chain

Reduced maintenance downtime by 65% after switching to our mobile aluminum scaffolding for routine ceiling and lighting repairs across 12 properties.
Project Duration: 6 months

Using Lucky Scaffolding to repair aircraft can improve efficiency

SkyTech Aviation Services

Improved aircraft maintenance efficiency with custom aluminum scaffolding that reduced setup time from 2 hours to 20 minutes per aircraft.
Project Duration: Ongoing

Use scaffolding for exterior wall renovation

Oceanfront Properties Ltd

Completed exterior renovation of 12 coastal buildings without corrosion issues using our marine-grade aluminum scaffolding system.
Project Duration: 3 months

Frequently Asked Questions

Find answers to common questions about aluminum scaffolding systems.

How does aluminum scaffolding compare in cost to steel?

Aluminum scaffolding typically has a higher initial purchase cost compared to steel scaffolding—usually 30-50% more. However, when factoring in long-term costs such as transportation, labor for assembly, maintenance, and longevity, aluminum often becomes the more cost-effective option, especially for projects requiring frequent repositioning or use in corrosive environments.

Is aluminum scaffolding strong enough for heavy tools and materials?

Yes, our aluminum scaffolding systems are designed to safely support medium-duty loads up to 4kN/m² (approximately 400kg per square meter). This is sufficient for most maintenance work, painting, electrical installations, and light construction tasks. For extremely heavy loads (over 4kN/m²), steel scaffolding may be more appropriate.

How many people are needed to assemble aluminum scaffolding?

A basic aluminum scaffold tower (up to 6m height) can be assembled by 2 people in 15-20 minutes without specialized tools. Larger structures may require an additional person, but the assembly time remains significantly faster than steel alternatives. Our quick-lock connection system eliminates the need for nuts, bolts, or complex tools.

Can aluminum scaffolding be used outdoors in all weather conditions?

Aluminum scaffolding is highly resistant to corrosion and performs well in most outdoor conditions, including rain, humidity, and coastal environments with salt spray. However, like all scaffolding, it should not be used in extreme weather such as high winds (over 8m/s for free-standing towers), thunderstorms, or heavy snow without proper engineering assessment and additional bracing.

What maintenance is required for aluminum scaffolding?

Aluminum scaffolding requires minimal maintenance compared to steel. Regular maintenance includes cleaning dirt and debris from connection points, checking for any bent or damaged components, ensuring locking mechanisms function properly, and lubricating moving parts annually. Unlike steel, there’s no need for repainting or rust treatment, significantly reducing long-term maintenance costs.

Can aluminum scaffolding be customized for irregular spaces?

Yes, our modular aluminum scaffolding systems are highly customizable. We offer a range of extension pieces, adjustable legs, corner connectors, and specialty components to adapt to irregular shapes, sloped surfaces, and unique architectural features. For complex projects, our engineering team can design custom configurations to meet your specific requirements.
