Premium Cuplock Scaffolding Systems

Industry-leading cup lock scaffolding solutions for efficient construction. Our cup and lock scaffolding systems offer quick assembly, superior strength, and versatile configurations for projects of all sizes.

View Specifications

Request a Quote

The Ultimate Cup Lock Scaffolding Solution

Our cuplock scaffolding systems represent the pinnacle of modular scaffold design, offering unmatched efficiency and reliability. As a leading manufacturer, we provide premium cuplock scaffolding for sale that meets the highest industry standards.

The innovative cup and lock mechanism of our cup lock scaffolding allows for lightning-fast assembly without loose components or special tools. Each connection point features a fixed lower cup and a movable upper cup that locks into place with a simple hammer blow, creating a secure, rigid structure.

Rapid Assembly

Cup lock scaffolding installs up to 60% faster than traditional tube and clamp systems.

Modular Design

Cuplock system scaffolding components are fully interchangeable for maximum flexibility.

Superior Strength

Our cup scaffolding supports heavy loads up to 5kN/m² with proper configuration.

Reusable Components

High-quality materials ensure long service life and multiple project usage.

4.9/5

★★★★★

“The cup lock system scaffolding reduced our construction time by 3 weeks compared to our previous projects. The cuplock stair tower was particularly impressive for safe, efficient worker access.”

— Michael ThompsonConstruction Manager

Cuplock Scaffolding Components

Our complete cup lock scaffolding system includes all necessary components for safe, efficient construction. Each part is precision-manufactured for perfect compatibility and maximum durability.

Mobile scaffolding tower vertical support column

Standards (Vertical Posts)

Vertical components with integral cup connections at 500mm intervals, forming the backbone of the cup lock scaffolding structure.
Material:Q355B Steel
Diameter:48.3mm & 60.3mm
Lengths:0.5m to 3.0m

Ledgers (Horizontal Members)

Horizontal components with spigot ends that lock securely into the cup connections of standards in cup lock system scaffolding.
Connection:Forged wedge locks
Lengths:0.6m to 3.0m
Finish:Hot-dip galvanized

Diagonal Braces

Inclined members that provide critical lateral stability to the cup lock scaffolding structure during construction.
Type:Fixed and adjustable
Lengths:1.0m to 4.0m
Angle Range:0° to 360° rotation

Scaffold Planks

Heavy-duty steel planks with hook ends that rest securely on ledgers to create safe working platforms.
Material:Galvanized steel
Lengths:1.0m to 3.0m
Load Rating:6kN/m²

Base Jacks & U-Head Jacks

Adjustable foundation components that provide stable base support and precise height adjustment for cup lock scaffolding.
Adjustment Range:150mm to 600mm
Load Capacity:15kN to 30kN
Base Plate:150x150mm to 200x200mm

Cuplock Stair Tower

Purpose-built stair systems that integrate seamlessly with cup lock scaffolding, providing safe, code-compliant access.
Rise Height:225mm standard
Tread Depth:250mm minimum
Safety Features:Handrails, toe boards

Cuplock Scaffolding Technical Specifications

Our cup lock scaffolding systems are engineered to meet or exceed international standards, delivering exceptional performance in demanding construction environments.

System Capabilities

Maximum free-standing height: 12m (depending on base dimensions)

Tied-to-structure height: Up to 120m with proper bracing

Working platform widths: 0.75m to 2.4m

Custom configurations for complex geometries

Request Custom Specifications

Material & Construction

Steel Grade	Q355B (EN 10219)
Yield Strength	≥355 MPa
Tensile Strength	470MPa – 630 MPa
Galvanization	Hot-dip, ≥85μm thickness
Cup Connections	Forged steel, 4-way connection
Finish	Hot-dip galvanized (ISO 1461)

Performance Metrics

Working Load Capacity	5kN/m² (heavy duty)
Ledger Load Capacity	10kN per ledger
Standard Load Capacity	18kN per standard
Wind Resistance	Up to 8m/s (free-standing)
Assembly Speed	60m² per worker per day
Service Life	20+ years with proper maintenance

Safety & Compliance

EN 12811-1: Temporary works equipment

BS 1139: Scaffolding for building construction

CE Marked (CPR 305/2011)

OSHA 1926.451 Scaffolding standards

ANSI/SSFI SC100-5 Performance specifications

ISO 9001:2015 Quality Management

Applications of Cup Lock Scaffolding

Our versatile cuplock scaffolding systems are engineered to excel in diverse construction environments, providing safe, efficient access and support.

Commercial Construction

Cup lock scaffolding provides efficient access for mid-rise office buildings, hotels, and retail complexes with regular geometries.

Industrial Facilities

Cuplock system scaffolding offers robust support for factories, power plants, and manufacturing facilities during construction and maintenance.

Infrastructure Projects

Cup and lock scaffolding systems are ideal for bridge construction, tunnel portals, and transportation hubs requiring quick assembly.

Oil & Gas Facilities

Galvanized cup scaffolding withstands harsh environments in refineries, petrochemical plants, and offshore installations.

Power Generation

Cup lock system scaffolding provides safe access for boiler maintenance, turbine installation, and power plant construction.

Stadiums & Arenas

Our cuplock scaffolding systems create temporary structures for seating, staging, and access during venue construction and events.

Modular Construction

Cuplock scaffolding for sale offers perfect alignment with modular building techniques, accelerating construction timelines.

Emergency Access

Rapidly deployed cup lock scaffolding provides emergency access for rescue operations and disaster recovery efforts.

Cuplock vs. Other Scaffolding Systems

Understanding the advantages of cup lock scaffolding compared to alternative systems helps you choose the right solution for your project requirements.

Characteristic	Cuplock Scaffolding	Ringlock Scaffolding	Tube & Clamp
Assembly Speed	Very fast – 60m² per worker/day	Fast – 50m² per worker/day	Slow – 15m² per worker/day
Load Capacity	High (up to 5kN/m²)	Very high (up to 6kN/m²)	Variable (up to 4kN/m²)
Angle Flexibility	Good – 90° & 180° connections	Excellent – 360° rotation	Excellent – unlimited angles
Cost Efficiency	High – best balance of speed and cost	Medium – higher initial cost	Low initial cost, high labor cost
Best For	Regular structures, mid-high rises, industrial	Complex structures, high rises, heavy loads	Irregular shapes, small projects, repairs

Success Stories With Our Cup Lock Scaffolding

Discover how construction professionals worldwide have benefited from our cuplock scaffolding systems and components.

Cuplock scaffolding manufactured in China is being utilised in the underground station project.

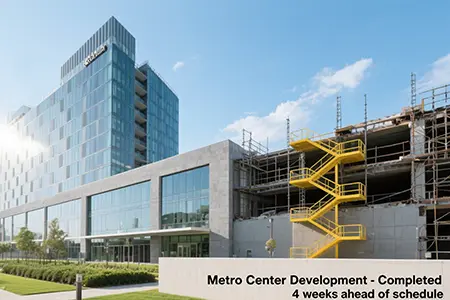

Metro Center Development

Completed 18-story mixed-use development 4 weeks ahead of schedule using our cup lock scaffolding system with integrated cuplock stair tower.
Project Size: 18 stories

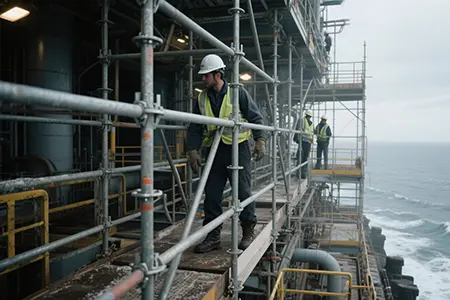

Harbor Power Plant Upgrade

Our cup lock system scaffolding provided safe access during a 12-week shutdown, withstanding harsh marine conditions.
Project Duration: 12 weeks

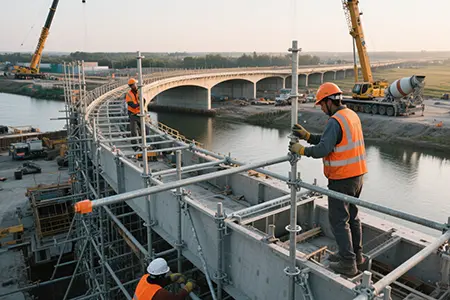

Cup-lock scaffolding towers manufactured in China have been deployed in bridge projects across the United States.

Riverside Bridge Expansion

Cup and lock scaffolding systems accelerated construction of the 650m bridge with curved sections and varying heights.
Project Length: 650 meters

Frequently Asked Questions

Find answers to common questions about our cuplock scaffolding systems, components, and purchasing options.

What makes cuplock scaffolding different from other systems?

Cuplock scaffolding features a unique cup and lock mechanism that allows for extremely fast assembly without loose components. The fixed lower cup and movable upper cup create a secure connection with just a hammer blow, significantly reducing installation time compared to tube and clamp systems. This makes cup lock scaffolding particularly efficient for projects with regular geometries.

Can I purchase individual components for cup lock scaffolding?

Yes, we offer all components of our cup and lock scaffolding system for individual sale. This includes standards, ledgers, diagonal braces, base jacks, scaffold planks, and complete cuplock stair tower systems. Our components are fully compatible with existing cuplock systems from other manufacturers, making it easy to expand or repair your current setup.

What is the typical lead time for cuplock scaffolding for sale?

For standard cuplock scaffolding components, we typically maintain inventory for quick delivery within 1-2 weeks. For complete systems or large orders, lead times generally range from 3-4 weeks. Custom configurations or specialized components like extended cuplock stair tower sections may require 4-6 weeks. Contact our sales team for specific project timelines.

How does cup lock scaffolding perform in harsh environments?

Our cup lock system scaffolding is designed to withstand demanding conditions. All components feature hot-dip galvanization with a minimum thickness of 85μm, providing excellent corrosion resistance for marine environments, chemical plants, and outdoor projects in harsh climates. For extreme conditions, we offer enhanced protective coatings that extend service life even further.

Is cup scaffolding suitable for curved or irregular structures?

While cup scaffolding excels with regular geometries, it can be adapted for moderately curved structures using specialized components and careful planning. For highly irregular or complex shapes, we often recommend combining cup lock scaffolding with ringlock components in specific areas. Our engineering team can design hybrid solutions that maximize the efficiency of cup lock systems while addressing unique project requirements.
