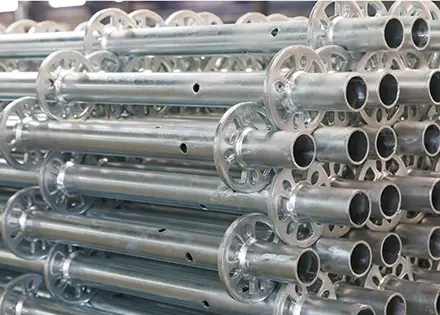

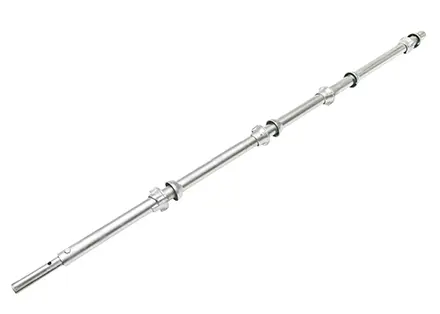

Ringlock Standards
Vertical posts with integrated rosette connection points (8 holes) spaced at 500mm intervals – critical ringlock scaffolding parts for any system configuration.
Material:Q355B Steel
Diameter:48.3mm & 60.3mm
Lengths:0.5m to 3.0m
Ledgers & Transoms

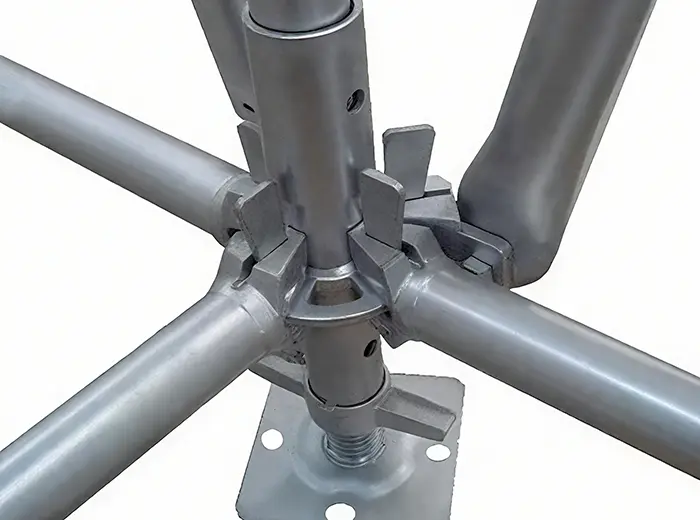

Horizontal members with forged wedge connectors that securely lock into rosettes – essential ringlock scaffolding parts for platform support.
Connection:Forged wedge locks
Lengths:0.6m to 3.0m
Finish:Hot-dip galvanized
Diagonal Braces
Inclined members with swivel connectors providing lateral stability – vital ringlock scaffolding parts for system integrity.
Type:Fixed and adjustable
Lengths:1.0m to 4.0m
Angle Range:0° to 360° rotation

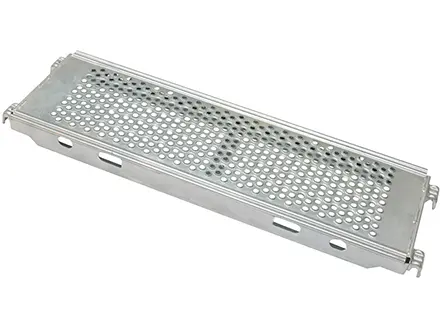

Steel Planks and Aluminum Planks
Heavy-duty steel planks with hook ends for secure placement – essential ringlock scaffolding parts for safe working platforms.
Material:Galvanized steel
Lengths:1.0m to 3.0m
Load Rating:6kN/m²
Base Jacks & U-Head Jacks
Adjustable foundation components providing stable base support – critical ringlock scaffolding parts for proper leveling.
Adjustment Range:150mm to 600mm
Load Capacity:15kN to 30kN
Base Plate:150x150mm to 200x200mm
Safety Components
Purpose-built safety elements including guardrails and access gates – vital ringlock scaffolding parts for worker protection.
Guardrail Height:1.1m
Toe Board Height:150mm
Compliance:EN 12811-1, OSHA
System Capabilities
Material & Construction
| Steel Grade | Q355B (EN 10219) |
| Yield Strength | ≥355 MPa |
| Tensile Strength | 470MPa – 630 MPa |
| Galvanization | Hot-dip, ≥85μm thickness |
| Rosette Connections | 8-hole forged steel |
| Wedge Connectors | Drop-forged carbon steel |
Performance Metrics
| Working Load Capacity | 6kN/m² (heavy duty) |
| Ledger Load Capacity | 12kN per ledger |
| Standard Load Capacity | 20kN per standard |
| Wind Resistance | Up to 10m/s (free-standing) |
| Assembly Speed | 50m² per worker per day |
| Service Life | 20+ years with proper maintenance |
Safety & Compliance
| Characteristic | Our Ringlock Scaffolding | Cuplock Scaffolding | Tube & Clamp |
|---|---|---|---|
| Assembly Speed | Very fast – 50m² per worker/day | Fast – 35m² per worker/day | Slow – 15m² per worker/day |
| Load Capacity | High (up to 6kN/m²) | Medium-high (up to 5kN/m²) | Variable (up to 4kN/m²) |
| Versatility | Excellent – 360° connections | Good – 90° & 180° connections | Excellent – unlimited angles |
| Cost Efficiency | High – faster assembly offsets cost | Good – balance of speed and cost | Low initial cost, high labor cost |
| Best For | Complex structures, high-rises, heavy loads | Regular structures, medium-rise buildings | Irregular shapes, small projects, repairs |
Metro Tower Development
Completed 45-story residential tower 6 weeks ahead of schedule using our ringlock scaffolding system, with 40% labor savings.
Project Size: 45 stories
Riverside Bridge Reconstruction
Custom ringlock scaffolding parts adapted to curved bridge structure, reducing installation time by 50%.
Project Length: 850 meters
Harbor Refinery Upgrade
Galvanized ringlock scaffolding system withstood harsh marine environment during 18-month refinery upgrade.
Project Duration: 18 months
