Technical Specifications
- Standard Material
- Q355B / S355JR steel tube
- Ledger Material
- Q235B / S235JR steel tube
- Tube OD
- 48.3mm (1.9 inches)
- Rosette Spacing
- 500mm (19.7 inches)
- Surface Treatment
- Hot dip galvanized to ISO 1461
- Zinc Coating
- >=80 micrometers (100 optional for marine use)
- Certification
- EN 12810, BS 1139, OSHA, AS/NZS 1576
- Monthly Output
- 3000+ tons
Ringlock Scaffolding Parts & Components
This is the complete catalogue of ring lock scaffolding parts we manufacture. Each ringlock scaffolding component below links to its own page with detailed specifications, and the dimensions table further down lists every standard size with metric and imperial lengths and weights. Need a PDF ringlock scaffolding catalogue or a material list for your project? Contact us and our engineers will send it within 12 hours.

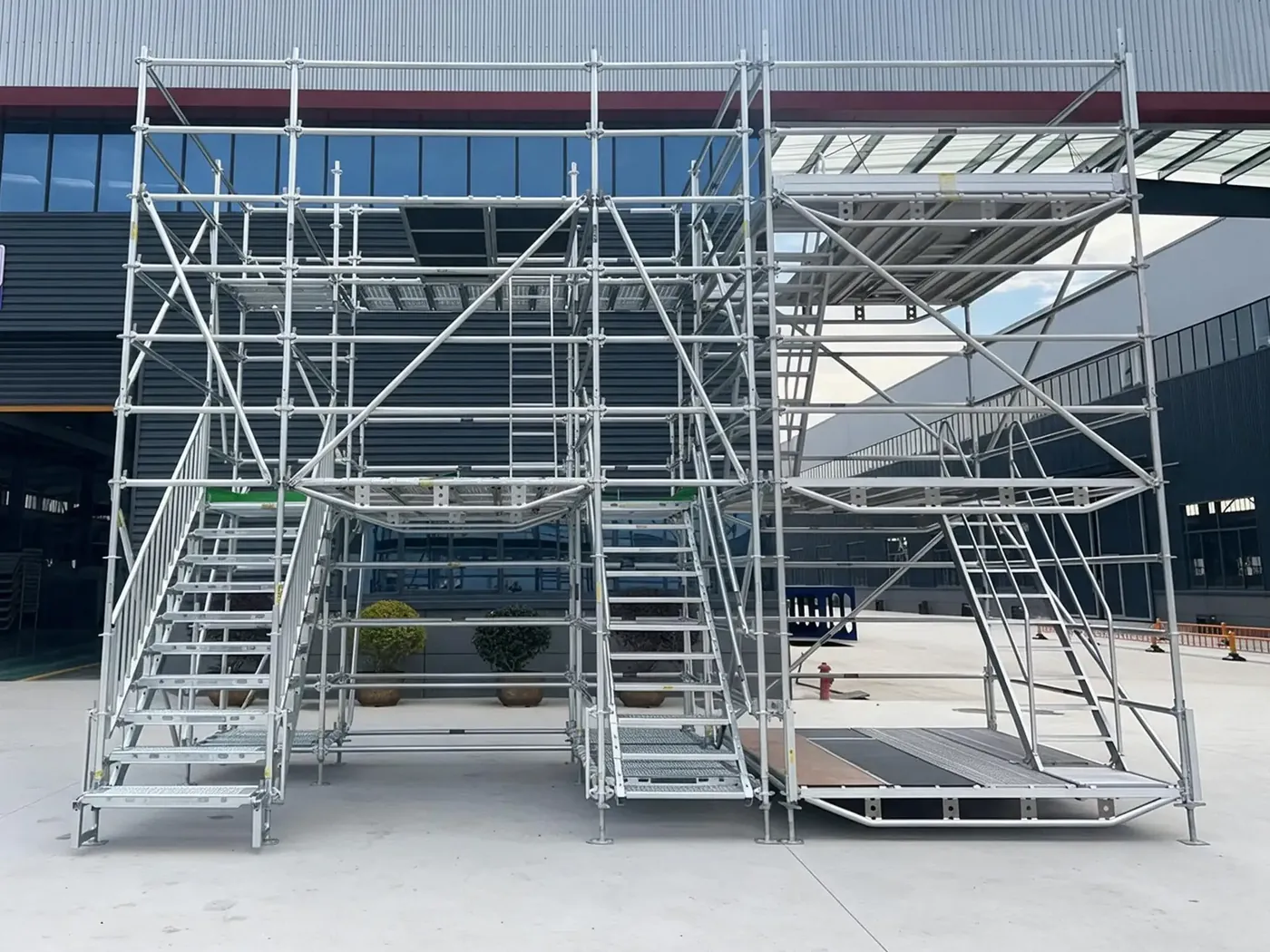

Ringlock scaffolding system, also known as rosette scaffolding or all-round scaffolding, is a modular access and support system widely used in building construction, bridge formwork, offshore platforms, shipbuilding, power plant maintenance, and industrial facility upgrades. Our complete ringlock scaffolding system includes standards (vertical posts), ledgers (horizontal tubes), diagonal braces, steel planks, base jacks, top jacks, rosettes, wedges, and all necessary accessories.
As a professional ringlock scaffolding manufacturer based in Nanjing, Jiangsu, China, LuckyScaffolding has been producing high-quality modular scaffold systems since 2005. Our rosette scaffolding system features the advanced rosette and wedge connection, allowing up to 8 connections per node at every 500mm interval. This multi-directional capability makes ringlock the fastest and most versatile scaffold system on the market, reducing assembly time by up to 60% compared to traditional tube-and-fitting scaffolds.
Our ringlock scaffolding system is manufactured from Q355B / S355JR high-strength steel for standards and Q235B / S235JR steel for ledgers and braces. All components are hot dip galvanized inside and out to ISO 1461 standard with a minimum zinc coating of 80 micrometers, ensuring 20+ years of corrosion resistance even in marine environments.
We supply complete ringlock scaffolding systems to contractors, scaffold rental companies, construction material distributors, and engineering firms in over 60 countries including the UK, Germany, Australia, UAE, Saudi Arabia, Singapore, Malaysia, and the USA. Our factory direct pricing, fast delivery, and full engineering support make us a trusted partner for large-scale construction projects worldwide.
Key Features
- Quick Assembly: Wedge locking by hammer, 4x faster than traditional tube & fitting scaffolds
- High Load Capacity: Rosette pressed from high-strength Q355B / S355JR steel, tested for heavy-duty shoring applications
- Multi-directional Connection: 8 connection points per rosette at every 500mm vertical spacing
- Long Service Life: Hot dip galvanized inside and out, resisting rust in marine and coastal environments
- Complete Range: Standards, ledgers, braces, planks, jacks, rosettes, wedges, and accessories from one supplier
- Engineering Support: Free scaffold layout design and material take-off for your project
Typical Configurations
- 1
Typical 2m access platform (2.5m bay): 4x Standards 2.0m, 8x Ledgers 2.5m, 4x Braces, 4x Base Jacks, 4x Top Jacks, 2x Planks/level
- 2
Heavy duty shoring tower (80kN/leg): 4x Standards 1.5m reinforced, 8x Ledgers 1.5m, 8x Braces, 4x Heavy Duty Base Jacks
Ringlock Scaffolding Components
Ringlock Standards
High-strength vertical standards with rosette connections. Q355B / S355JR steel, multiple lengths available.
Ringlock Ledgers
Horizontal members with forged wedge heads. Multiple lengths, Q235B / S235JR steel options.
Diagonal Braces
Lateral bracing tubes with wedge heads for structural stability. Custom lengths available.
Rosettes & Wedges
8-point rosette plates and self-locking wedges. The heart of the ringlock connection system.
Base Jacks & Top Jacks
Adjustable solid and hollow base jacks and top jacks. Multiple thread sizes and adjustment ranges.
Steel Planks
Anti-slip galvanized steel walkway platforms with hook-on design. Multiple widths and lengths.
All Accessories

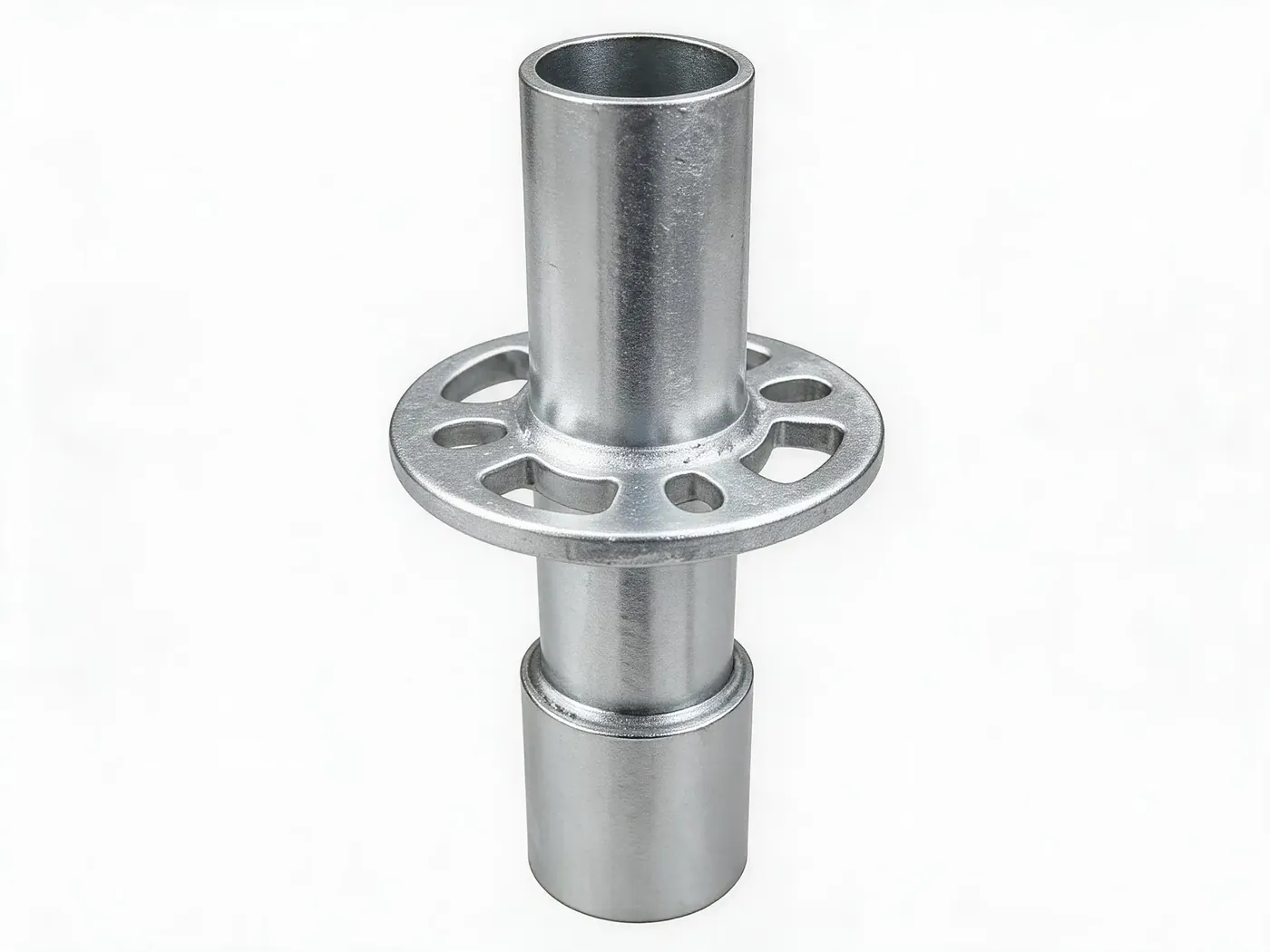

Complete range of accessories: spigots, collars, stairs, toe boards, and custom fabricated parts.
Ringlock Scaffolding Dimensions & Weights
Standard sizes of every ring lock scaffolding part we make: product codes, tube diameter and wall thickness, metric and imperial lengths, and weights.
| Code | Item | Outer Diameter × Wall Thickness | Length | Weight | ||
|---|---|---|---|---|---|---|
| Metric | Imperial | KG | LBS | |||
| LS-SYS-001 | Ringlock System Complete Set | 48.3*3.2mm | 0.5M-3.0M | 1'8"-9'10" | Varies | Varies |
| LS-STD001 | Ringlock Standard 0.5M | 48.3*3.2/3.25/4.0 | 0.5M | 1'8" | 3.2KG | 7.1LBS |
| LS-STD002 | Ringlock Standard 1.0M | 48.3*3.2/3.25/4.0 | 1.0M | 3'3" | 5.5KG | 12.2LBS |
| LS-STD003 | Ringlock Standard 1.5M | 48.3*3.2/3.25/4.0 | 1.5M | 4'11" | 7.0KG | 15.5LBS |
| LS-STD004 | Ringlock Standard 2.0M | 48.3*3.2/3.25/4.0 | 2.0M | 6'7" | 10.2KG | 22.5LBS |
| LS-STD005 | Ringlock Standard 2.5M | 48.3*3.2/3.25/4.0 | 2.5M | 8'2" | 11.7KG | 25.8LBS |
| LS-STD006 | Ringlock Standard 3.0M | 48.3*3.2/3.25/4.0 | 3.0M | 9'10" | 14.9KG | 32.8LBS |
| LS-LED001 | Ringlock Ledger 0.65M | 48.3*2.75/3.0/3.2 | 0.65M | 2'2" | 3.0KG | 6.6LBS |
| LS-LED002 | Ringlock Ledger 1.07M | 48.3*2.75/3.0/3.2 | 1.07M | 3'6" | 4.4KG | 9.7LBS |
| LS-LED003 | Ringlock Ledger 1.57M | 48.3*2.75/3.0/3.2 | 1.57M | 5'2" | 6.2KG | 13.7LBS |
| LS-LED004 | Ringlock Ledger 2.13M | 48.3*2.75/3.0/3.2 | 2.13M | 7'0" | 8.2KG | 18.1LBS |
| LS-LED005 | Ringlock Ledger 2.44M | 48.3*2.75/3.0/3.2 | 2.44M | 8'0" | 9.3KG | 20.5LBS |
| LS-LED006 | Ringlock Ledger 3.05M | 48.3*2.75/3.0/3.2 | 3.05M | 10'0" | 11.4KG | 25.1LBS |
| LS-BRA001 | Ringlock Brace 0.65x2.0M | 42.2*2.5/48.3*2.75 | 0.65M | 2'2" | 7.7KG | 17.0LBS |
| LS-BRA002 | Ringlock Brace 1.07x2.0M | 42.2*2.5/48.3*2.75 | 1.07M | 3'6" | 8.2KG | 18.1LBS |
| LS-BRA003 | Ringlock Brace 1.57x2.0M | 42.2*2.5/48.3*2.75 | 1.57M | 5'2" | 9.0KG | 19.8LBS |
| LS-BRA004 | Ringlock Brace 2.13x2.0M | 42.2*2.5/48.3*2.75 | 2.13M | 7'0" | 10.1KG | 22.3LBS |
| LS-BRA005 | Ringlock Brace 2.44x2.0M | 42.2*2.5/48.3*2.75 | 2.44M | 8'0" | 10.8KG | 23.8LBS |
| LS-BRA006 | Ringlock Brace 3.05x2.0M | 42.2*2.5/48.3*2.75 | 3.05M | 10'0" | 12.3KG | 27.1LBS |
| LS-ROS001 | Ringlock Rosette Standard | Dia. 123mm | 8mm | 0.3" | 0.55KG | 1.2LBS |
| LS-ROS002 | Ringlock Rosette Heavy Duty | Dia. 123mm | 10mm | 0.4" | 0.68KG | 1.5LBS |
| LS-WDG001 | Ringlock Wedge Standard | Forged steel | 48mm | 1.9" | 0.12KG | 0.3LBS |
| LS-WDG002 | Ringlock Wedge Heavy Duty | Forged steel | 48mm | 1.9" | 0.15KG | 0.3LBS |
| LS-BJS001 | Solid Base Jack 38x600mm | Solid 38mm | 600mm | 1'11" | 5.2KG | 11.5LBS |
| LS-BJS002 | Solid Base Jack 38x1000mm | Solid 38mm | 1000mm | 3'3" | 7.8KG | 17.2LBS |
| LS-BJH001 | Hollow Base Jack 38x600mm | Hollow 38mm | 600mm | 1'11" | 4.1KG | 9.0LBS |
| LS-BJH002 | Hollow Base Jack 38x1000mm | Hollow 38mm | 1000mm | 3'3" | 6.2KG | 13.7LBS |
| LS-UHS001 | Solid Top Jack 38x600mm | Solid 38mm | 600mm | 1'11" | 5.5KG | 12.1LBS |
| LS-UHH001 | Hollow Top Jack 38x600mm | Hollow 38mm | 600mm | 1'11" | 4.4KG | 9.7LBS |
| LS-PLK001 | Steel Plank 210x1.0M | 1.2mm plate | 1.0M | 3'3" | 5.2KG | 11.5LBS |
| LS-PLK002 | Steel Plank 210x1.5M | 1.2mm plate | 1.5M | 4'11" | 7.4KG | 16.3LBS |
| LS-PLK003 | Steel Plank 210x2.0M | 1.2mm plate | 2.0M | 6'7" | 9.5KG | 20.9LBS |
| LS-PLK004 | Steel Plank 210x2.5M | 1.2mm plate | 2.5M | 8'2" | 11.7KG | 25.8LBS |
| LS-PLK005 | Steel Plank 210x3.0M | 1.2mm plate | 3.0M | 9'10" | 13.8KG | 30.4LBS |
| LS-PLK006 | Steel Plank 240x2.0M | 1.5mm plate | 2.0M | 6'7" | 11.2KG | 24.7LBS |
| LS-ACC001 | Spigot Connector | Forged Q235 | 235mm | 9.3" | 0.85KG | 1.9LBS |
| LS-ACC002 | Joint Pin | 12mm dia | 225mm | 8.9" | 0.35KG | 0.8LBS |
| LS-ACC003 | Connecting Sleeve | 48.3*3.2mm | 300mm | 11.8" | 1.25KG | 2.8LBS |
| LS-ACC004 | Scaffold Stair 2.0M | Varies | 2.0M | 6'7" | 18.5KG | 40.8LBS |
| LS-ACC005 | Toe Board 1.0M | 1.0mm plate | 1.0M | 3'3" | 2.1KG | 4.6LBS |
| LS-ACC006 | Toe Board 2.5M | 1.0mm plate | 2.5M | 8'2" | 4.9KG | 10.8LBS |
| LS-ACC007 | Caster Wheel 150mm | Rubber/Steel | 150mm | 5.9" | 2.5KG | 5.5LBS |
| LS-ACC008 | Caster Wheel 200mm | Rubber/Steel | 200mm | 7.9" | 3.2KG | 7.1LBS |
* Weights are approximate and may vary slightly due to galvanizing thickness. Custom sizes and models available on request.
Frequently Asked Questions
Can you design a custom ringlock scaffolding system for my project?
Yes, our engineers can provide free scaffold layout drawings, 3D models, and detailed material lists if you share your structural drawings, height requirements, and load specifications.
What is the minimum order quantity for a complete ringlock system?
We accept LCL (Less than Container Load) orders for trial, but FCL (Full Container Load) is preferred for better freight cost. A typical first order is 1x20GP or 1x40HQ container.
What is the delivery time for ringlock scaffolding systems?
Standard delivery is 15-25 days for a 40HQ container after order confirmation and deposit receipt. Large orders may take 30-45 days.
Do you provide load calculations and safety documentation?
Yes, we provide load capacity tables, EN 12810 compliance certificates, material test reports, and coating thickness reports with every shipment.
Can I mix different product types in one container?
Absolutely. Most customers order a mix of standards, ledgers, braces, planks, and jacks in one container. We optimize the packing to maximize container space.
What is the difference between ringlock and cuplock scaffolding?
Ringlock uses a rosette with 8 connection points and a wedge locking mechanism, allowing multi-directional connections. Cuplock uses a cup and blade system with only 4 connection points per node. Ringlock is faster to assemble and more versatile for complex geometries.
Do you offer OEM branding and custom colors?
Yes, we offer laser marking, stamping, and custom-colored powder coating for large orders. Custom RAL colors are available for powder-coated finishes.
